AZS Refractory Bricks

1.High Temperature and Erosion Resistance,
2.High Compactness Property,
3.Good Mechanical Property and Wear Resistance.

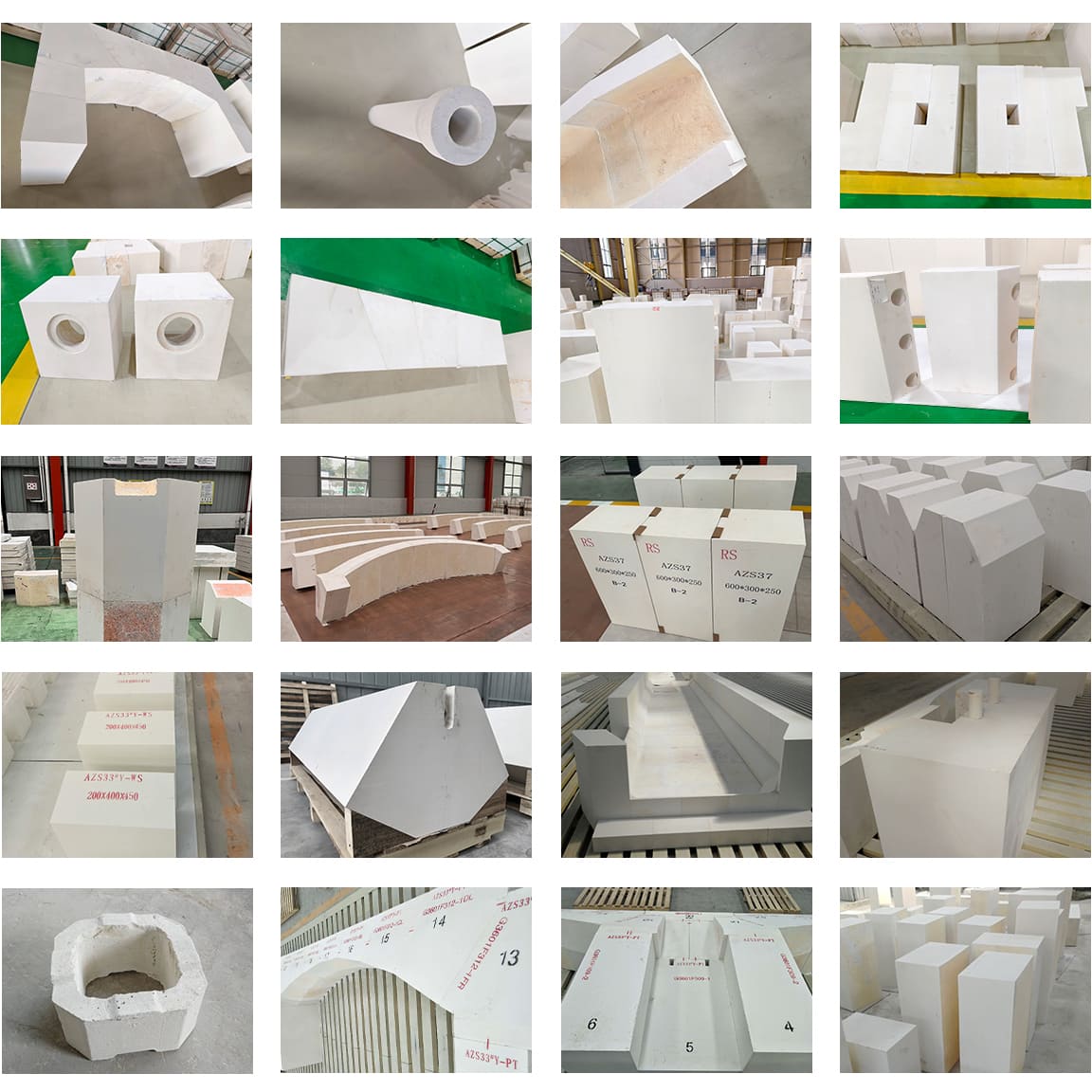

4.We manufacture a wide range of AZS refractories, including blocks, plates, feeding bowls, checker bricks, stirring rods, burner blocks, sight hole bricks and so on.
5.All products can be supplied in custom sizes and shapes according to your drawings or specifications.

Email:info@rs-refractory.ru

Whatsapp:+8613803710548

Description

Inquiry

Description

AZS Bricks Introduce

Fused Cast AZS Refractories Manufactured from high-purity industrial alumina and zircon sand as primary raw materials. The mixed batch is melted in an electric arc furnace, then cast, annealed, machined, and pre-assembled into furnace structures.

Grades by ZrO₂ content: 33#, 36#, 41#.

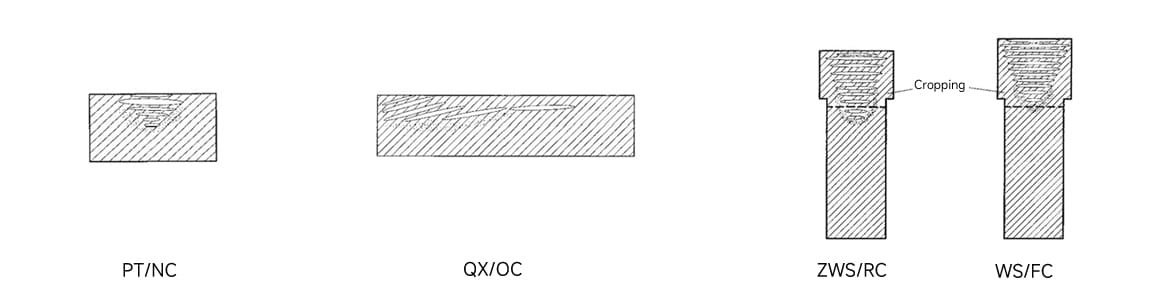

Casting methods available:

PT/NC – Normal Cavity

QX/OC – Oriented Cavity

ZWS/RC – Reduced Cavity

WS/FC – Full cut Cavity
azs brick Casting method

AZS Brick is a kind of fused cast zirconia-corundum refractory brick which is short writing of abbreviation that AZS from “A” of Al2O3, “Z” of ZrO2 and “S” of SiO2. Such as No. 33 fused cast zirconia-corundum refractory brick adopts the “AZS-33#” as its abbreviation, No. 36 fused cast zirconia-corundum refractory brick adopts the “AZS-36#” as its abbreviation and No. 41 fused cast zirconia-corundum refractory brick adopts the “AZS-41#” as its abbreviation.

All our AZS refractories are produced using the oxidation process (Y)

In an oxidizing atmosphere, the key impurities (Fe³⁺, Ti⁴⁺) remain in a high-valence state, keeping the glass-phase exudation temperature above 1400°C. This greatly enhances resistance to glass melt attack.

In contrast, reduction-process (H) products contain Fe²⁺ and Ti³⁺, with a glass-phase exudation temperature of only ~1100°C. This leads to faster corrosion, causing stones, streaks, and bubbles in the glass.

We choose oxidation – for quality you can see and rely on.

Application of AZS Bricks

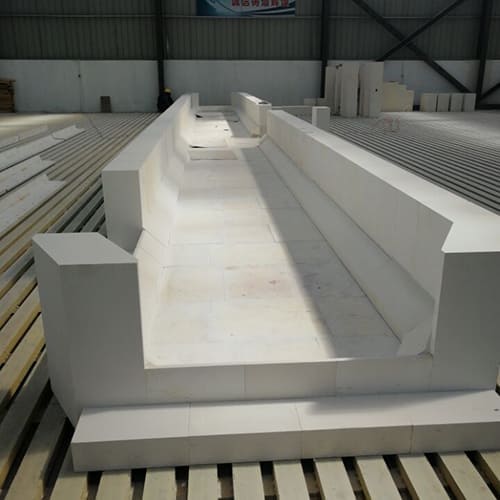

The AZS bricks are mainly applied for the top and bottom structure of melting chamber. Such as melting tank, the tank wall brick, the paving brick, the forehearths and so on. The high corrosion part shall be AZS 41#, such as the feeding part, the throat, the bubble brick, the furnace weir, the burner block, the tongue brick the discharging part and so on.

Rongsheng Refractory AZS Bricks Technical Data

Chemical composition		AZS-33	AZS-36	AZS-41
ZrO2		≥33	≥35	≥40
SiO2		≤16.0	≤14	≤13.0
Al2O3		a little	a little	a little
Na2O		≤1.5	≤1.6	≤1.3
Fe2O3+TiO2		≤0.3	≤0.3	≤0.3
Physical Properties
Bulk density(g/cm3):		3.5-3.6	3.75	3.9
Cold crushing Mpa		350	350	350
Thermal expansion coefficient (1000°C)		0.8	0.8	0.8
Exudation temp. of glass phase		1400	1400	1400
Corrocion resistance of glass melt(mm/24h)		1.6	1.5	1.3
Density	PT QX	3.4	3.45	3.55
